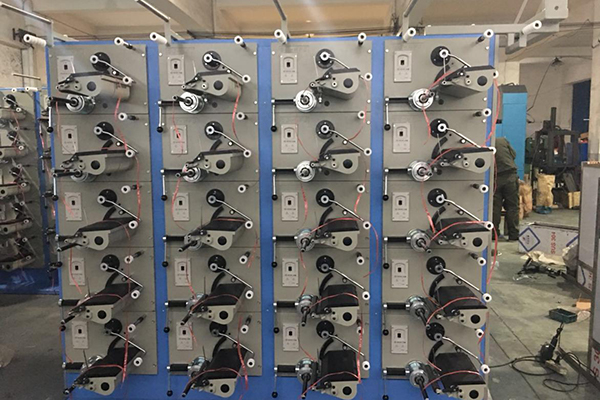

电子上下盖带变频卷绕机 BT-BPJR-V2

2018-01-24 11:17




  特点及应用| Characteristics and Application
  卷绕机主要用于化纤单丝的收卷,也可在轻工、纺织、电子等生产领域配套使用。本公司收卷机具有线速度高、丝筒成形好、张力恒定、能耗低等特点,它不仅适用于卷绕塑料扁丝、折叠丝、裂膜丝,经过适当的改动后对玻璃纤维,碳纤维的单丝卷绕尤为理想,其性能和价格都优于国内同类产品。
  特点:
  1. 卷速度快、成品率高,卷装平整。
  2. 同步轮、同步带传动磨损少,噪音低。
  3. 铝合金的支架、连杆,确保了机器的连续使用性。
  4. 所用主要部件由数控机床加工,产品精度高。
  技术参数:
  卷绕线速度: 0-150m/min
  扁丝线密度 :60~1000tex
  扁丝宽度 :0.2~25mm.
  卷绕筒管尺寸: 76mm×152mm×180mm
  卷筒最大直径 :160mm-250mm
  往复行程:150mm(可定制)
  单锭尺寸: 475mm×325mm
  电机功率:100w/220v
  电机转速:1400r/min-2800r/min
  The winding machine is mainly used in the production of fiber single silk, and also can be used in light industry, textile, electronics and other production areas.It has high speed winding , wire tube forming good, constant tension, low energy consumption, it is not only suitable for wire winding, folding plastic flat silk, split wire, after appropriate modification of glass fiber, carbon fiber filament winding is ideal, its performance is better than the domestic similar products and prices
  Features:
  1. Quick roll speed, high yield and smooth roll
  2. Synchronous wheel, synchronous belt drive less wear, low noise
  3. The supporting and connecting rod of aluminum alloy ensure the continuous use of the machine
  4. The main parts are processed by NC machine tool and high precision
  Technical parameters:
  Winding speed:0-150m/min
  Flat wire density:60~1000tex
  Flat wire width:0.2~25mm.
  Winding bobbin size:76mm×152mm×180mm
  The maximum diameter of the drum:160mm-250mm
  Reciprocating stroke:150mm(Can be customized)
  Single spindle size:475mm×325mm
  Motor power:100w/220v
  Motor speed:1400r/min-2800r/min
