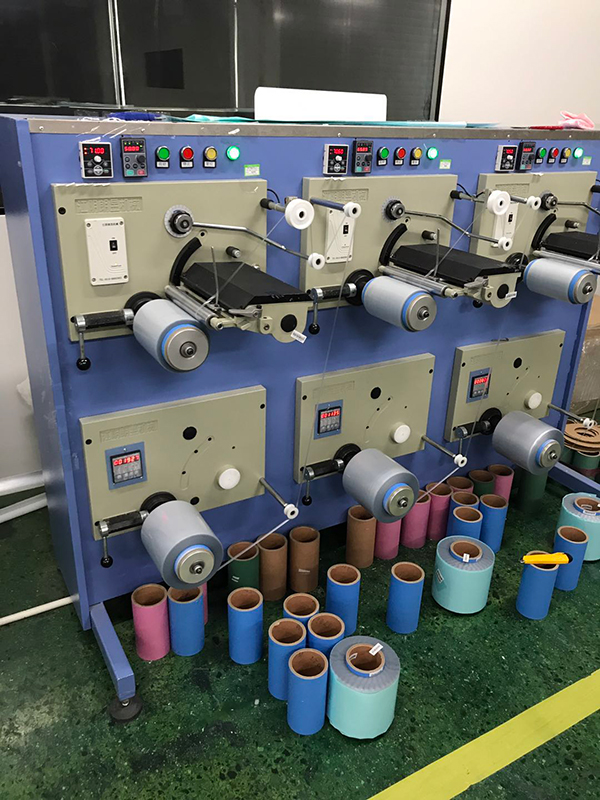

胶带复卷机

张力计厂家 2018-01-24




  特点及应用| Characteristics and Application
  适用于各种胶带,纸卷大卷复卷为小卷以及不良品的重绕。本机最大特点:可将不平整材料及不等规格产品重新整理减少不良率。复卷不同宽度,只需调整校正导轮,即可将不平整材料校正达到最平整收卷。
  卷取张力采用传感器控制,可以不同材料张力自行调整。配有计长器,自动停机设置。
  技术参数:
  卷绕机绕丝线速度:0-280m/min(可根据客户要求设定)
  卷筒最大直径:  250mm
  电源:AC380V/220V  50HZ/60HZ
  电机功率:120W-370W
  电机转速:1400r/min
  连接电缆:4×1.5   R.S.J.MP
  卷绕筒管尺寸:内径×外径×长度(mm) 58×68×230(内径和长度有不同要求可在范围内为您定做)
  往复行程:203/254
  单锭面板尺寸:宽×高(mm)477×330
  Applicable to all kinds of tape, rolls and rolls, rolls and rewinding of defective products.The most characteristic of this machine: it can rearrange the uneven material and other products to reduce the defective rate.The different width of the rewinding can be adjusted by adjusting the adjusting guide wheel to achieve the smoothness of the uneven material.The tension of the coil is controlled by the sensor, which can be adjusted by the tension of different    materials.Equipped with meter, automatic stop setting
  Technical parameters:
  Winding speed:0-280m/min(Can be set according to customer requirements)
  The maximum diameter of the drum:250mm
  Power:AC380V/220V  50HZ/60HZ
  Motor power:120W-370W
  Motor speed:1400r/min
  Connect the cable:4×1.5   R.S.J.MP
  Winding bobbin size:Inside diameter x Outside diameter x length(mm)58X68X230(The inner diameter and length have different requirements can be customized in the range)
  Reciprocating stroke:203/254mm
  Single spindle size:475mm×330mm
