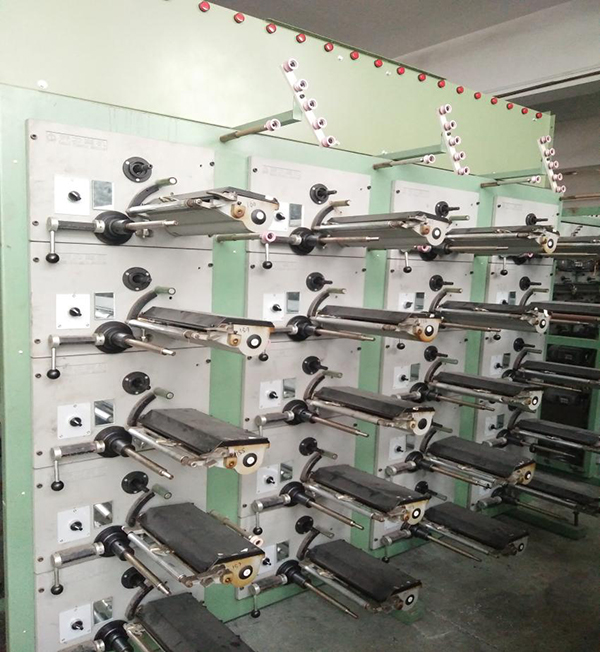

变频特种纤维卷绕机 BT-BPDSJR-290

2018-01-24 09:24



  特点及应用| Characteristics and Application
  卷绕机主要用于纤维卷绕,也可在轻工、纺织、电子等生产领域使用。本机器具有丝筒成形好,张力恒定,能耗低等特点。
  技术参数:
  线速度:0-50m/min
  电源:AC220V  50HZ
  电机功率:120W-370W
  电机转速:1400r/min-2800r/min
  连接电缆:4×1.5   R.S.J.MP
  卷绕筒管尺寸:Φ94(内径)×290(长度)×7(壁厚)mm
  卷绕成型尺寸:Φ250×250(mm)
  往复行程:290mm(可调)
  单锭面板尺寸:宽×高(mm)475×330
  机架尺寸:1850mm(长)X750mm(宽)X2450mm(高)
  The winding machine is mainly used for fiber winding, and also can be used in light industry, textile, electronics and other production areas.The machine has the characteristics of good silk tube forming, constant tension and low energy consumption.
  Technical parameters:
  Winding speed:0-50m/min
  Power:AC220V  50HZ
  Motor power:120W-370W
  Motor speed:1400r/min-2800r/min
  Connect the cable:4×1.5   R.S.J.MP
  Winding bobbin size:Φ94(内径)×290(长度)×7(壁厚)mm
  Winding the size:Φ250×250(mm)
  Reciprocating stroke:290mm(Can be customized)
  Single spindle size:475mm×325mm
  The frame size:1850mm(长)X750mm(宽)X2450mm(高)
