GT-3RTS 张力传感器

2018-04-16 13:06:24


0.05kg...50kg
Maximum capacity (Emax)额定载荷(kg):
0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50

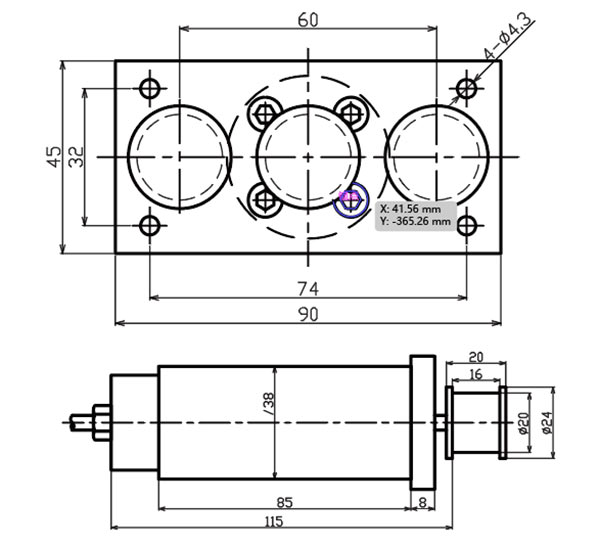

外形尺寸

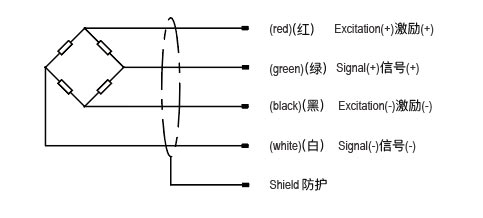

接线图


参数详情
Rated Load 额定载荷 kg  0.2,0.5,1,2,5,10,20,50
Rated Output 额定输出 MV/V 1.5
Zero balance 零点平衡 %R.O ±1
Comprehensive Error 综合误差 %R.O ±0.3
Nolinear 非线性 %R.O   ±0.3
Lag 滞后 %R.O ±0.1
repeatability 重复性 %R.O ±0.1
Temp. compensated 正常工作温度范围 -10-+40
Safe temp. range 允许工作温度范围 -20-+70
Temp.effect/10℃ on output 温度对灵敏度影响 %R.O./10℃  ±0.03
Temp.effect/10℃ on zero 温度对零点影响 %R.O./10℃ ±0.03
Rated excitation 激励电压 VDC 5-12
Maximum excitation 最大激励 VDC 15
Input impedance 输入阻抗 Ω 406±10
Output impedance 输出阻抗 Ω 350±3
Insulation resistance 绝缘阻抗 >3000
Safe overload 安全载荷 %R.C. 150
Ultimate overload 极限载荷 %R.C. 300
Material 材料   aluminum
Degree of protection 保护等级   IP65
Cable length 线长 m 3
Cable color code 接线   Red(+E) Black(-E)
Green(+S) White(-S)
