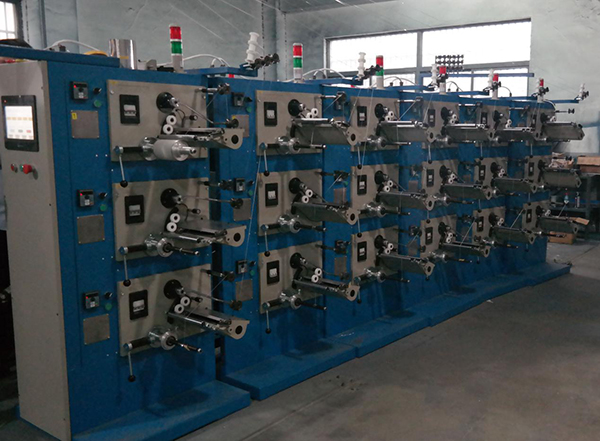

数控伺服控制卷绕机

2018-01-24 09:46


  特点及应用| Characteristics and Application
  卷绕机主要用于铝膜窄带分条卷绕等生产领域使用。本机器具有高速、直筒锥边均可,起点可设,终点可设,幅宽可调,排绕间距可调,张力可调,恒速恒张力控制,程序可储存,参数集中控制,丝筒成形好。张力恒定,能耗低等特点,适用于各种带状物等。
  技术参数:
  卷绕机绕丝线速度:0-150m/min
  卷筒最大直径:82.5-200mm
  电源:AC220V  50HZ/60HZ
  电机功率:伺服电机:750W
  电动机:120W
  电机转速:伺服电机:3000 r/min
  电动机:1400r/min
  连接电缆2×2.5   R.S.J.MP
  卷绕筒管尺寸:内径×外径×长度(mm)76×82.5×180(无论内径和长度均可以在有限范围内为您定做)
  往复行程:0/160(标准)
  单锭面板尺寸:宽×高(mm)477×330
  The winding machine is mainly used in the production field of the aluminum film narrowband strip winding.This machine has high speed, straight cone edge, can set a starting point, end point can be set, the width is adjustable, around distance is adjustable, adjustable tension, constant speed, constant tension control program can be stored, centralized control parameters, silk tube forming.Constant tension, low energy consumption, etc
  Technical parameters:
  Winding speed:0-150m/min
  The maximum diameter of the drum:82.5-200mm
  Power:AC220V  50HZ/60HZ
  Motor power:Servo motor:750w
  Motor:120w
  Motor speed:Servo motor:3000 r/min
  Motor:1400r/min
  Connect the cable:2X2.5   R.S.J.MP
  Winding bobbin size:Inside diameter x Outside diameter x length(mm)38x41x230(The inner diameter and length have different requirements can be customized in the range)
  Reciprocating stroke:0/160
  Single spindle size:475mm×330mm
