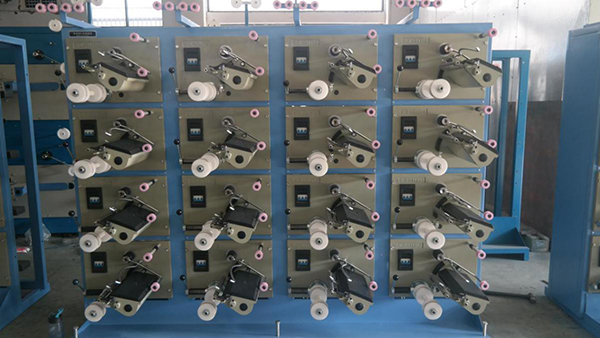

浸胶线变频卷绕机

2018-01-24 09:37



  特点及应用| Characteristics and Application
  主要用作塑料编织袋拉丝机组卷绕机,也可在轻工、纺织、电子等生产领域使用。本机器具有高速,丝筒成形好。张力恒定,能耗低等特点,适用于各种绳类,扁丝,纤维,圆丝,带状物等。
  技术参数:
  卷绕机绕丝线速度:0-280m/min(可根据客户要求设定)
  卷筒最大直径:  200mm
  电源:AC380V/220V  50HZ/60HZ
  电机功率:120W-370W
  电机转速:2800r/min
  连接电缆4×1.5   R.S.J.MP
  卷绕筒管尺寸:内径×外径×长度(mm) 38×41×230(内径和长度有不同要求可在范围内为您定做)
  往复行程:203/254
  单锭面板尺寸:宽×高(mm)477×330
  It is mainly used as winding machine for plastic woven bag drawing machine, and also can be used in light industry, textile, electronics and other production areas.This machine has high speed, silk tube forming well.Constant tension and low energy consumption are applicable to all kinds of rope, flat silk, fiber, round wire, etc.
  Technical parameters:
  Winding speed:0-280m/min(Can be set according to customer requirements)
  The maximum diameter of the drum:200mm
  Power:AC380V/220V  50HZ/60HZ
  Motor power:120W-370W
  Motor speed:2800r/min
  Connect the cable:4×1.5   R.S.J.MP
  Winding bobbin size:Inside diameter x Outside diameter x length(mm)38x41x230(The inner diameter and length have different requirements can be customized in the range)
  Reciprocating stroke:203/254mm
  Single spindle size:475mm×330mm
